Used Hyundai 305LC-9 Excavator 30 Ton Class 247 HP

Name: Used Hyundai 305LC9 Excavator 30 Ton Class 247 HP
Brand: Hyundai
Price: 1 USD

China Used Hyundai 305LC-9 Excavator 30 Ton Class 247 HP wholesale

Brand Name : Hyundai

Model Number : 305LC - 9

Certification : ISO CE etc.

Place of Origin : Korea

MOQ : 1

Price : negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 9999

Delivery Time : 7days

Packaging Details : 20"/40" Container/Flat Rack/ Bulk Cargo / Ro-Ro Shipping for safety of your goods, professional, environmental and friendly packaging services will be provided for your selection.

Engine Model : Hyundai D6AC-C

Gross Power : 247 HP (184 kW)

Operating Weight : 29700 kg

Standard Bucket Capacity : 1.27 m³

Bucket Digging Force : 182.4 kN

Arm Digging Force : 133.4 kN

Max Digging Reach : 10820 mm

Max Digging Depth : 7370 mm

Max Loading Height : 7240 mm

Main Pump Flow : 2 x 252 L/min

Swing Speed : 9.8 RPM

Tail Swing Radius : 3180 mm

Max Travel Speed : 5.3 km/h

Contact Now

Product Description:

The Used Hyundai 305LC - 9 is a 30 - ton class excavator that has been a staple in the construction industry. It is known for its reliability and performance in various applications such as construction sites, mining operations, and large - scale earth - moving projects.

Features and Characteristics:

Powerful Engine: Equipped with a Cummins QSB6.7 engine, it delivers a rated power of 169 kW at 1900 rpm, providing sufficient power for tough jobs.
Large Bucket Capacity: The 1.38 m³ bucket allows for efficient material handling, increasing productivity in each cycle.
Good Mobility: With travel speeds of 3.1 - 5.2 km/h and a swing speed of 10.2 rpm, it can move around the work area and position itself quickly.
High Digging Forces: A bucket digging force of 189.3 kN and an arm digging force of 136.3 kN enable it to break through tough soil and rocks easily.

Advantages:

Durability: Built with high - quality materials, it can withstand the rigors of continuous use in harsh working conditions.
Fuel Efficiency: The engine is designed to be fuel - efficient, helping to reduce operating costs over time.
Operator Comfort: The spacious cab is designed for operator comfort, with features like an adjustable seat and easy - to - reach controls, which can lead to increased productivity during long working hours.

Parameter Table:

Items	Specifications
Overall Operating Weight (kg)	29700
Bucket Capacity (m³)	1.38
Boom Length (mm)	6250
Arm Length (mm)	3050
Swing Speed (rpm)	10.2
Travel Speed (km/h)	3.1 - 5.2
Gradeability (%)	70/35°
Ground Pressure (kPa)	57
Bucket Digging Force (kN)	189.3
Arm Digging Force (kN)	136.3
Engine Model	Cummins QSB6.7
Rated Power (kW/rpm)	169/1900
Displacement (L)	6.7
Number of Cylinders	6
Bore × Stroke (mm×mm)	107×124
Cooling Method	Water - cooled
Main Pump Type	2×Variable Axial Piston Pump + Gear Pump
Main Pump Maximum Flow (L/min)	2×252
Working Hydraulic Circuit Pressure (MPa)	34.3
Travel Hydraulic Circuit Pressure (MPa)	34.3
Swing Hydraulic Circuit Pressure (MPa)	30
Pilot Circuit Pressure (MPa)	4
Boom Cylinder (mm)	140×1465
Arm Cylinder (mm)	150×1765
Bucket Cylinder (mm)	135×1185
Standard Hydraulic Breaker Pipeline	Yes
Fuel Tank Capacity (L)	500
Hydraulic Oil Tank Capacity (L)	190
Hydraulic System Capacity (L)	330
Engine Oil Replacement Capacity (L)	24
Coolant Capacity (L)	50
Total Transport Length (mm)	10560
Total Transport Width (mm)	3200
Total Transport Height (mm)	3290
Full Cab Height (mm)	3010
Counterweight Ground Clearance (mm)	1190
Track Ground Contact Length (mm)	4030
Total Track Length (mm)	4940
Track Plate Width (mm)	600
Total Track Width (mm)	3200
Track Gauge (mm)	2600
Minimum Ground Clearance (mm)	500
Rear Swing Radius (mm)	3200
Maximum Digging Radius (mm)	10820
Maximum Digging Radius at Ground Level (mm)	10620
Maximum Digging Depth (mm)	7500
Maximum Digging Height (mm)	10160
Maximum Dumping Height (mm)	7110
Maximum Vertical Digging Depth (mm)	6410
Maximum Digging Depth at 2.5m Horizontal (mm)	7300

Used Hyundai 305LC-9 Excavator 30 Ton Class 247 HP

Product Tags:

Used Hyundai 305LC-9 excavator 30 ton

Hyundai excavator 247 HP

30 ton class excavator with warranty

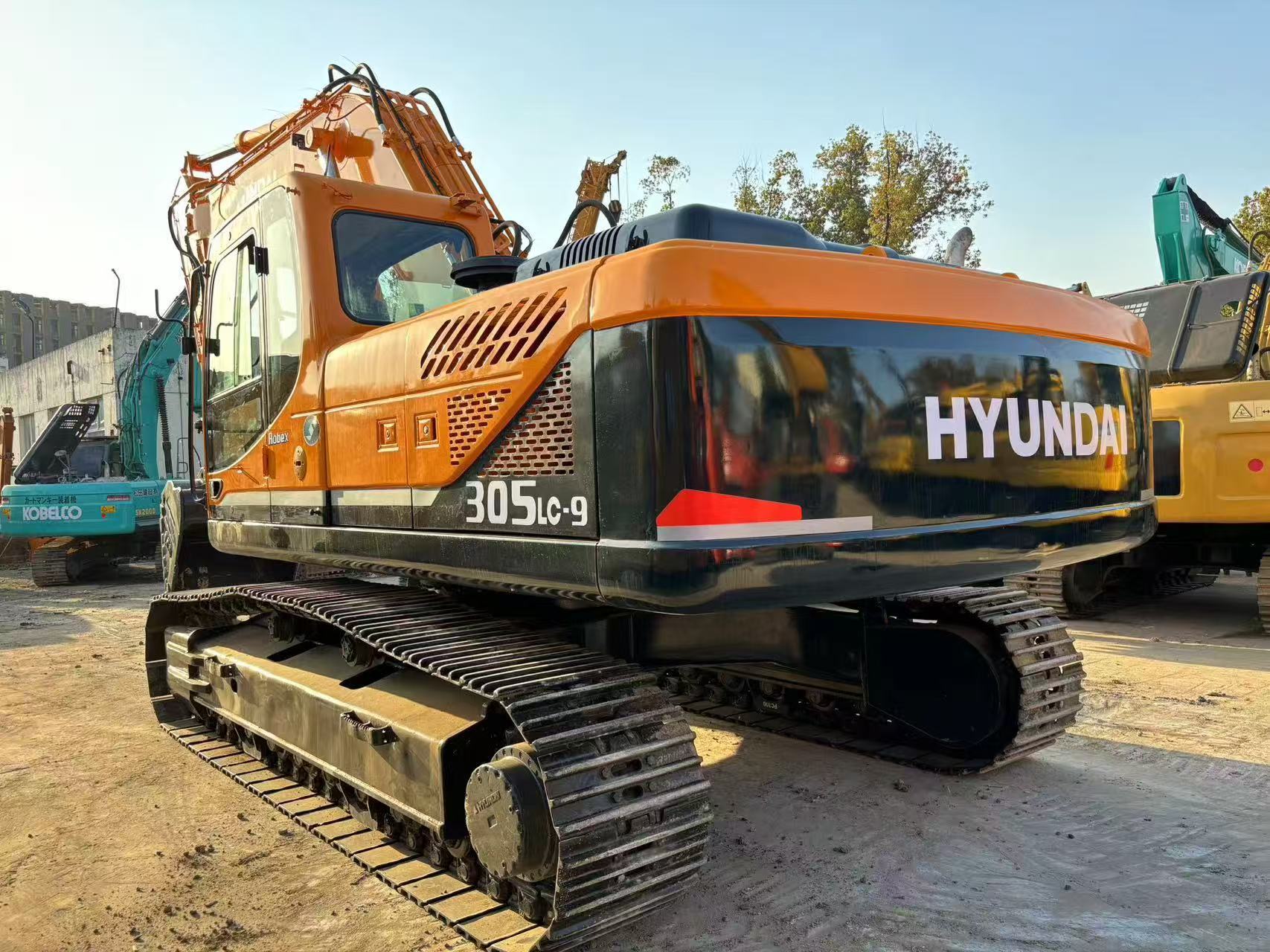

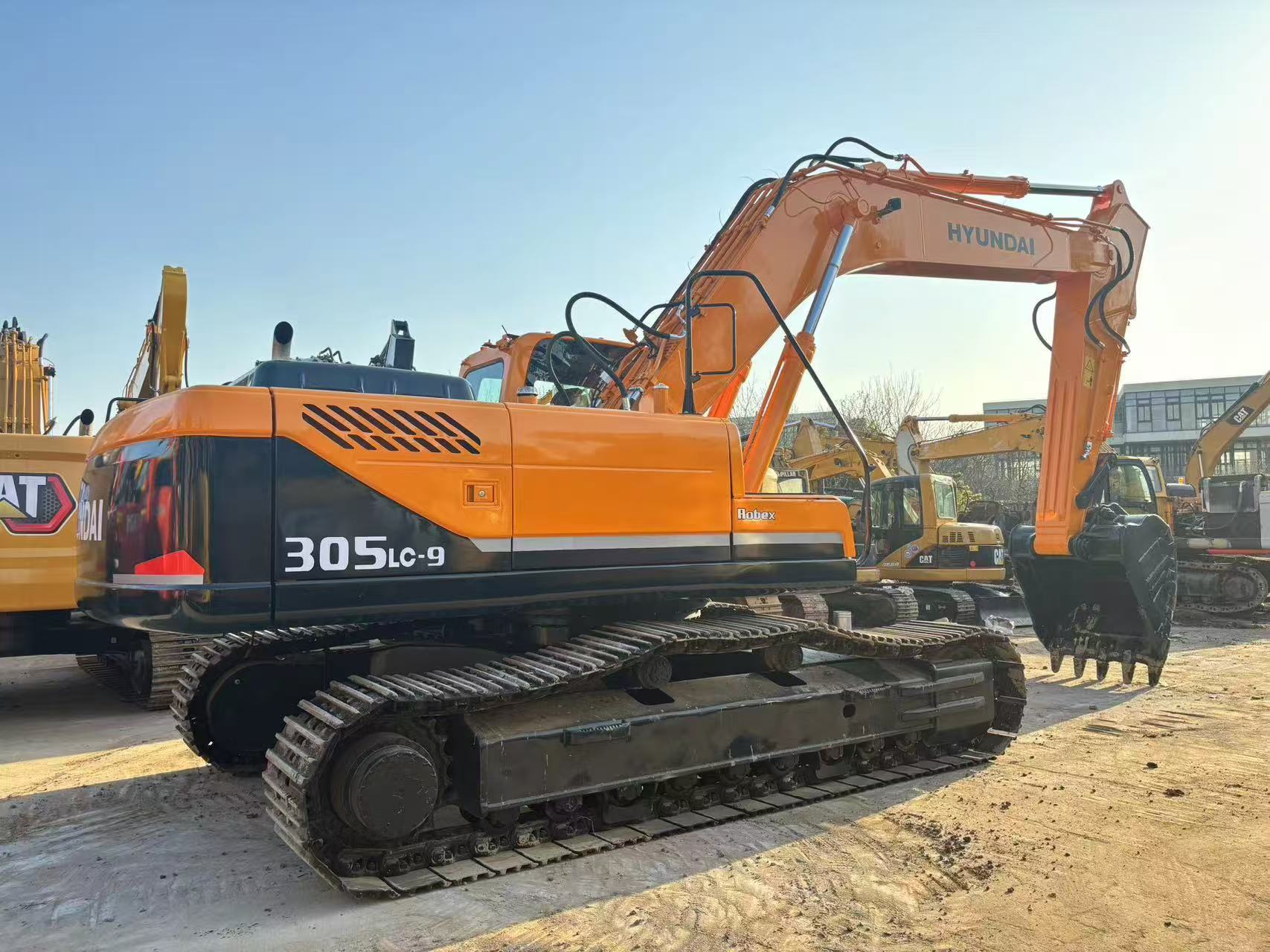

Used Hyundai 305LC-9 Excavator 30 Ton Class 247 HP Images
